Product Overview:

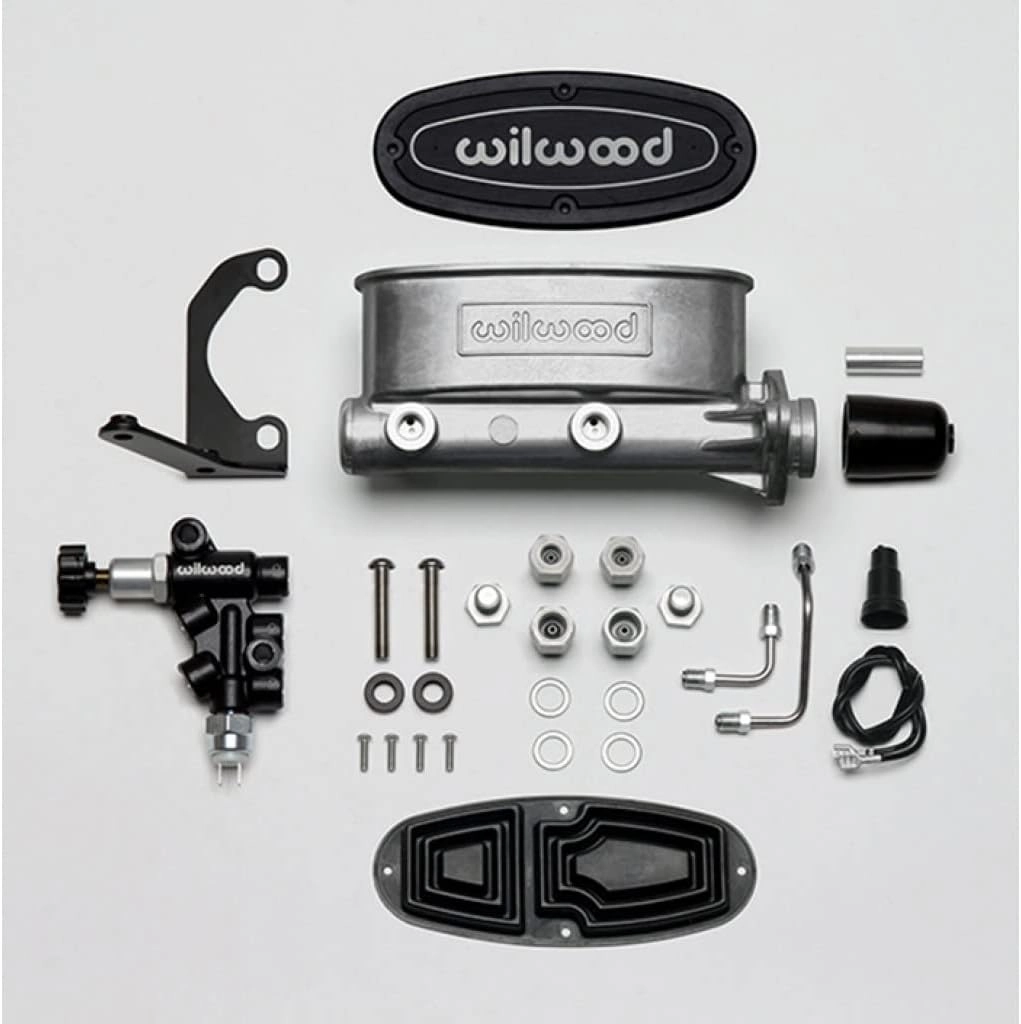

- Wil-Wood Has Packaged The Popular Aluminum Tandem Chamber Master Cylinder With The Combination Proportioning Valve, Mounting Bracket, Fluid Tubes And Mounting Hardware In A Kit. Tandem Master Cylinder Represents The Latest In Refinements In Brake Pressure Actuation And Fluid Control. The Slotted Flange Mounting Makes It A Simple Bolt On For Many Oe Mounts Including The Popular Compatible With Chry-Sler, Corvette, Gm, And Compatible With Fo-Rd Compatible With Mustang Bolt Patterns And Is Compatible With Manual Or Power Brake System Applications. Master Cylinders Are Available In Four Bores Sizes, 7/8", 15/16", 1.00" Or 1-1/8", And Three Finishes, Standard, Ball Burnished Or Black E-Coat. The Combination Proportioning Valve Substantially Simplifies Wiring And Brake Proportioning Adjustments On Vehicles With Custom Brake Systems. The Combination Block Maintains Full Isolation Between Front And Rear Fluid Circuits And Is Specifically Designed To Accompany The Tandem Chamber Master Cylinder. The Combo Valve And Bracket Are Black E-Coated For A Performance Look And Long Lasting Durability.

Product Info:
- Wil-Wood Hv Tandem M/C Kit W L/H Bracket & Prop Valve - 1 1/8In Bore
- Type: Tandem Outlet
- Outlets: 2
- Material: Aluminum
- Finish: Bare

Manufacturer Part Number:
- Part Number: 261-13270

Specifications:
-Master Cylinder Dimensions
Bore Size: 1-1/8"
Area (In²): 0.970
Stroke: 1.10

-Master Cylinder Description
Type: Tandem Outlet
Outlets: 2
Material: Aluminum
Finish: Bare

-Reservoir
Res Type: Integral
Res Size (Oz): 8.0 / 4.8
Res Size(Cu In): 14.4 / 8.7
